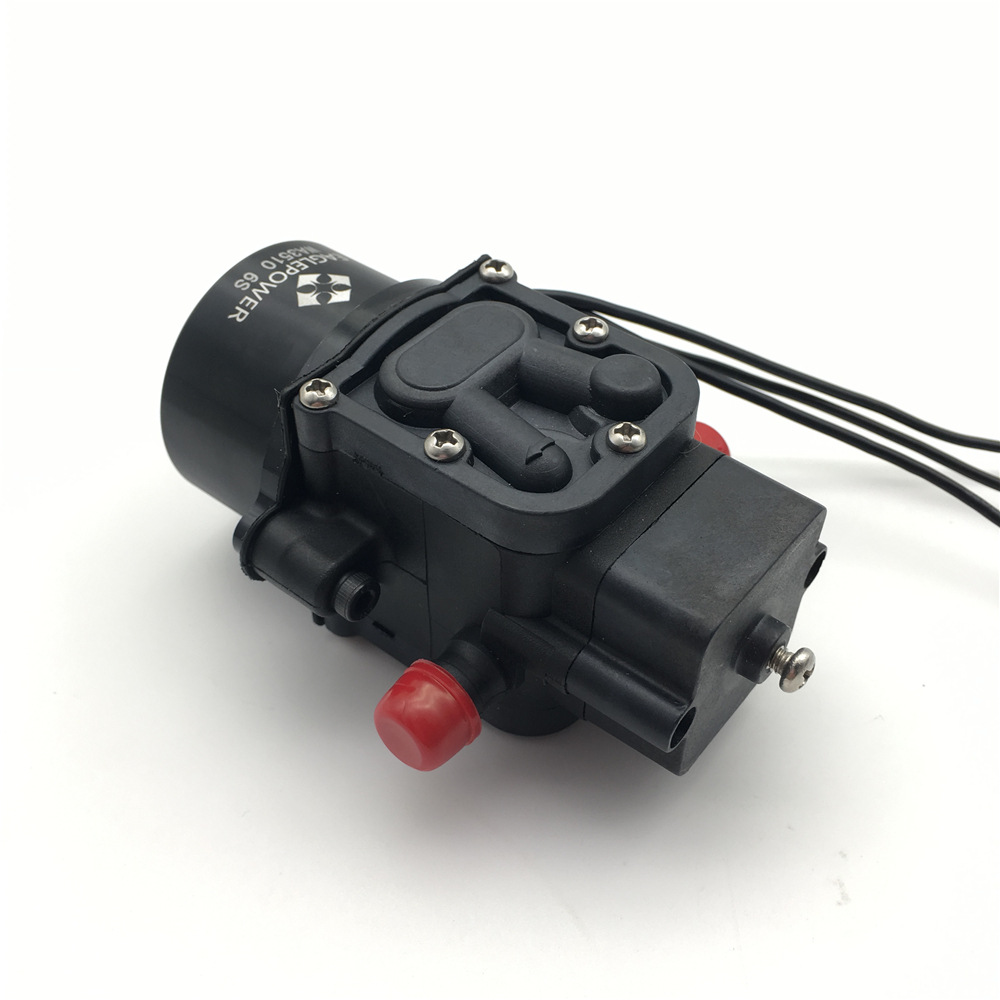

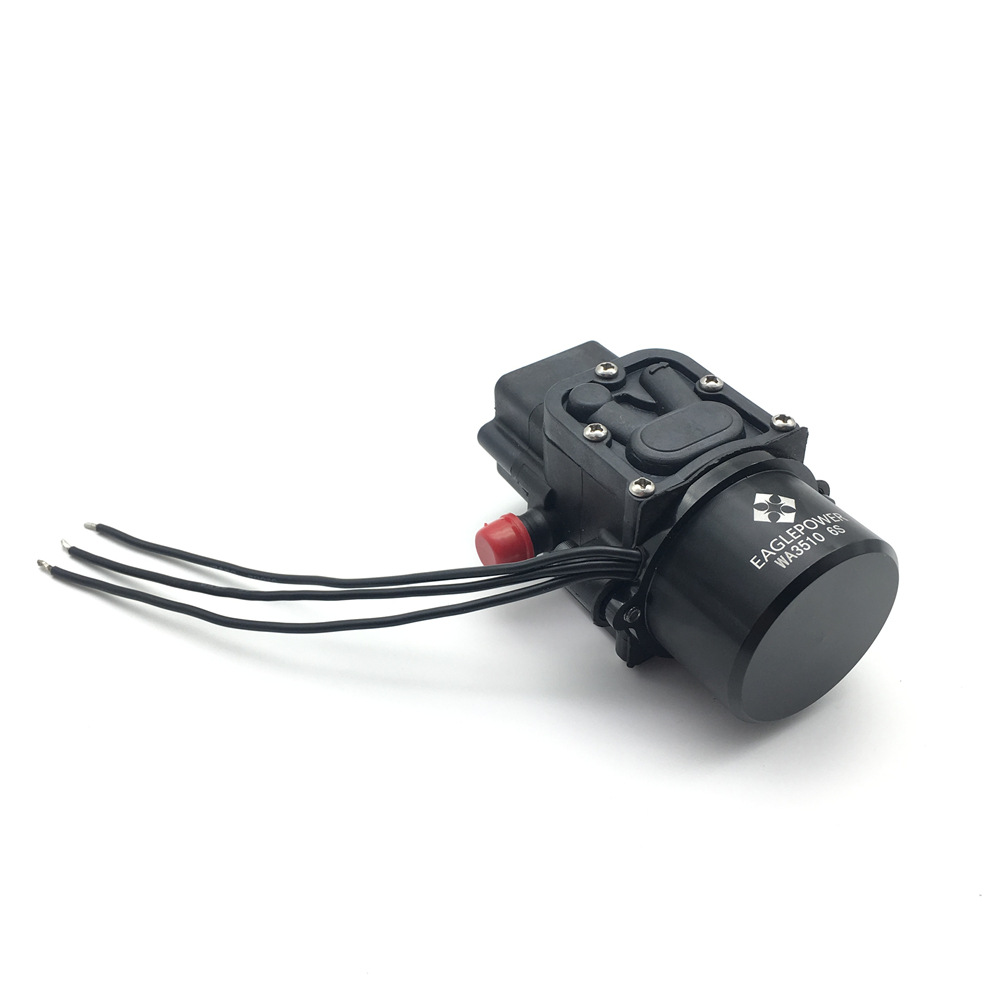

5.5 -5.8L/min 24v Brushless Water Pump Diaphragm Pump for Plant Agriculture UAV Drone Spraying Water Pump UAV Spraying Pump

Product Details

Product Name：5.5 -5.8L/min UVA 24v Brushless Water Pump Diaphragm Pump

Specification

Model:WA3510 48V

Name: Brushless Diaphragm Pump

Net weight:285g Voltage: DC48V

Pressure: 0.85Mpa Flow rate: 5.8L/min

Maximum suction: 2m

Outlet Diameter:OD 10mm, ID 6mm

Model:WA3510 24V

Name: Brushless Diaphragm Pump

Net weight:285g Voltage: DC24V

Pressure: 0.8Mpa Flow rate: 5.5L/min

Maximum suction: 2m Outlet

Diameter: OD 10mm, ID 6mm

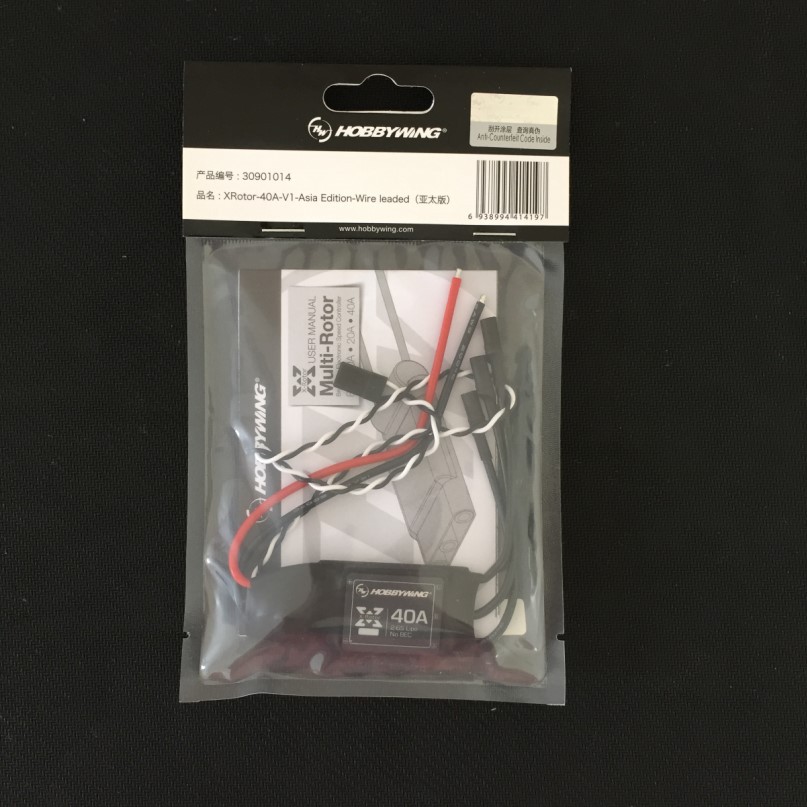

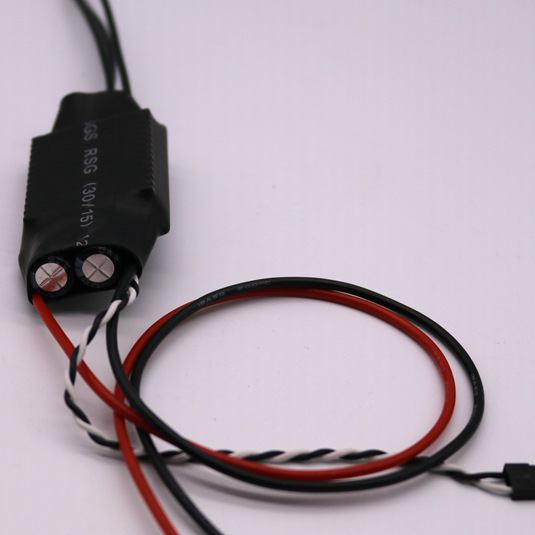

24V controller

Support lithium battery: 2-6S lithium battery

Continuous current: 40A

Instantaneous current: 60A (10 seconds)

Size: 68*25*8.7mm Weight: 26g

BEC output: None Plug: 3.5mm plug

Programmable item: timing: high/medium

48V controller

Support lithium battery: 10-14S

Max current: 5A

Rated current: 2.5A

Weight: 28g

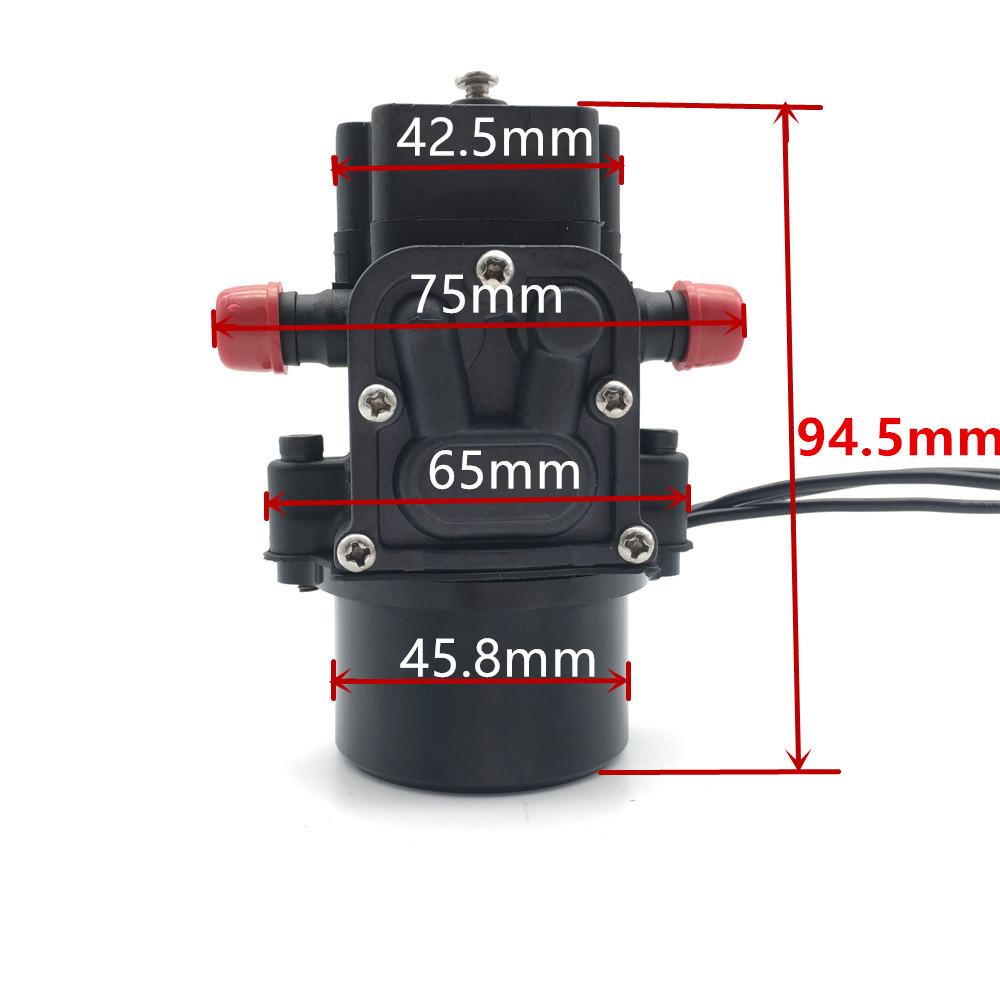

Dimension：（units：mm)
