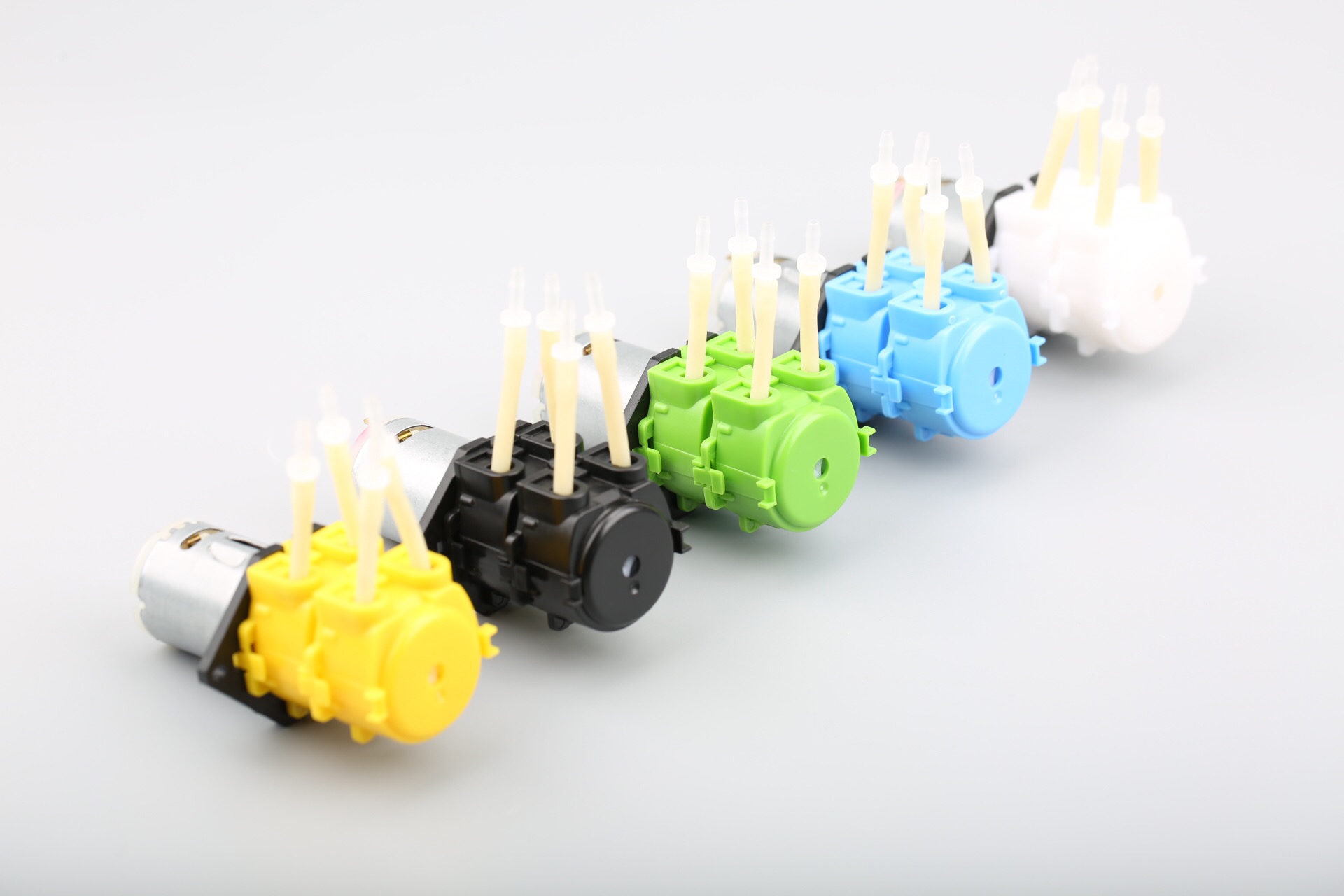

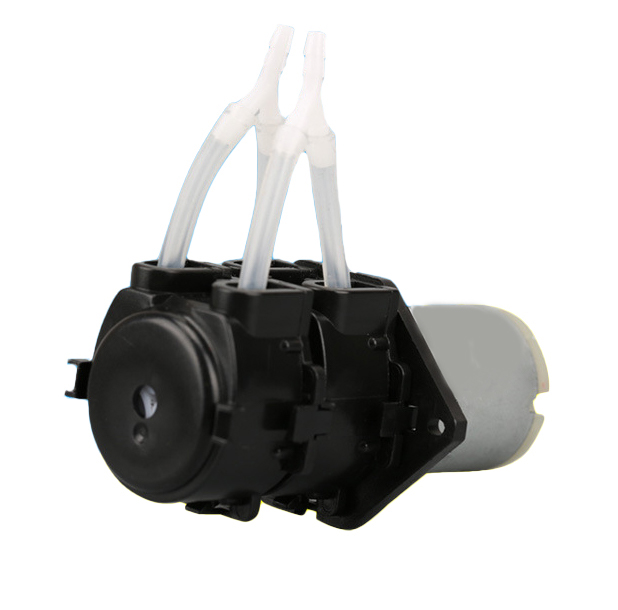

Product name: AB71 Mini Peristaltic Pump Laboratory Analysis Pump Double-head Peristaltic Pump
Product parameters:
Model: AB71
Motor: DC motor
Voltage: 12V
Flow range: 38-240ml/min
Pump tube: silicone tube, Pharmed BPT imported tube
Pump tube connection mode: parallel connection, series connection (default parallel)
Life: 1000 hours
Pump head material: POM (acid and alkali resistant)
Head: 2 meters (6.562ft.) maximum (water absorption)
Flow parameters:
Tube
Tube size（mm)
Voltage
Current（mA)
Flow（ml/min)
Silicone tube
1*3
12V
370
38
Silicone tube
1.5*3.5
12V
350
85
Silicone tube
2*4
12V
430
125
Silicone tube
2.5*4.5
12V
370
225
Silicone tube
3*5
12V
560
240
Note: The above data is used as a reference for selection, subject to actual working conditions.
