SZ Type FRP Glass Fiber Reinforced Plastic Self - priming Pump

  • Inlet Dia.(mm):25-100
  • Outlet Dia.(mm):25-80
  • Flow(m3/h):3.2-200
  • Shaft Power(KW):0.55-11
  • Product description: SZ Type FRP Glass Fiber Reinforced Plastic Self - priming Pump
  • INQUIRY   EMAIL

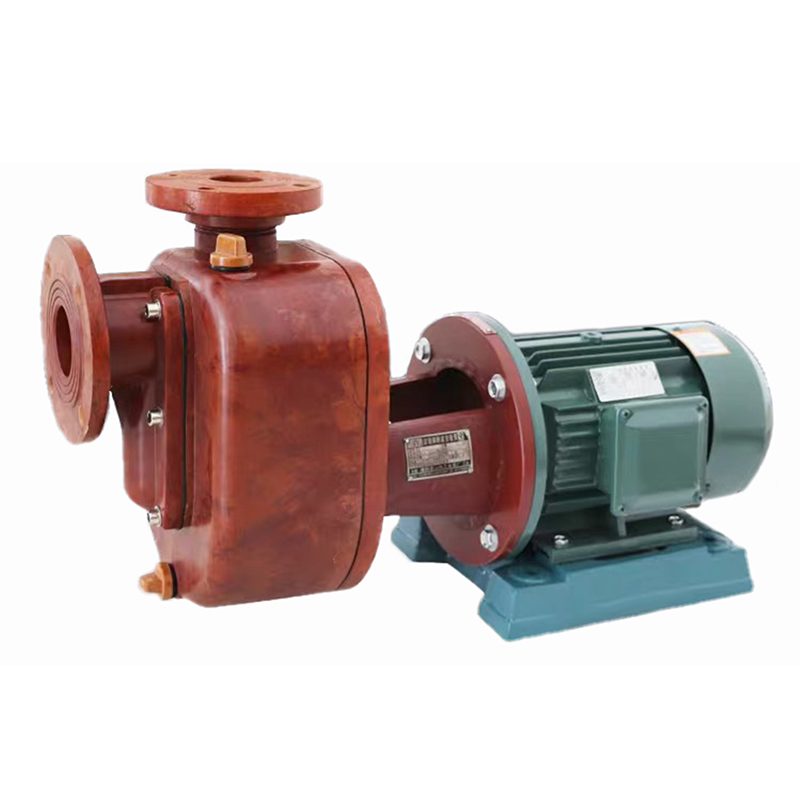

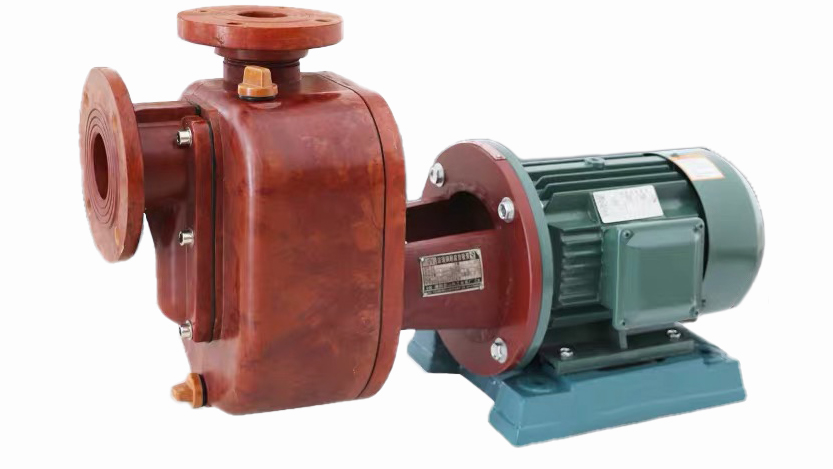

SZ Type FRP Glass Fiber Reinforced Plastic Self - priming Pump

The SZ type glass fiber reinforced plastic self-priming pump is a single-stage, single-suction, direct-connection type glass self-priming pump. According to ISO2858 standard, optimized design is developed. The product has a strong self-priming ability. The pump body is equipped with a liquid suction chamber, a liquid storage chamber, a liquid return check valve, and a return hole. Before working, only need to ensure that a certain amount of liquid is stored in the pump body, and then the liquid can be discharged after the air in the tube is taken out.

Inlet Dia.(mm)

25-100

Outlet Dia.(mm)

25-80

Flow(m3/h)

3.2-100

Speed(rpm)

2900

NPSHm

3-4

Efficiency

41%-69%

Shaft Power(KW)

0.75-11

Shaft seal

Mechanical seal











Type

Inlet

Outlet

Flow(m3/h)

Head(m)

Speed(r/min)

Power(kw)

SZ25x25-12.5

25

25

3.2

12.5

2900

0.55/0.75

SZ40x32-20

40

32

6.3

20

2900

1.1/1.5

SZ40x32-32

40

32

6.3

32

2900

2.2/3

SZ50x40-20

50

40

12.5

20

2900

2.2/4

SZ50x32-32

50

32

12.5

32

2900

4.0/5.5

SZ65x50-20

65

50

25

20

2900

3.0/4

SZ65x50-32

65

50

25

32

2900

5.5/7.5

SZ80x65-32

80

65

50

32

2900

7.5/11

SZ100x80-32

100

80

100

32

2900

15

SZ100x80-40

100

80

100

40

2900

18.5
