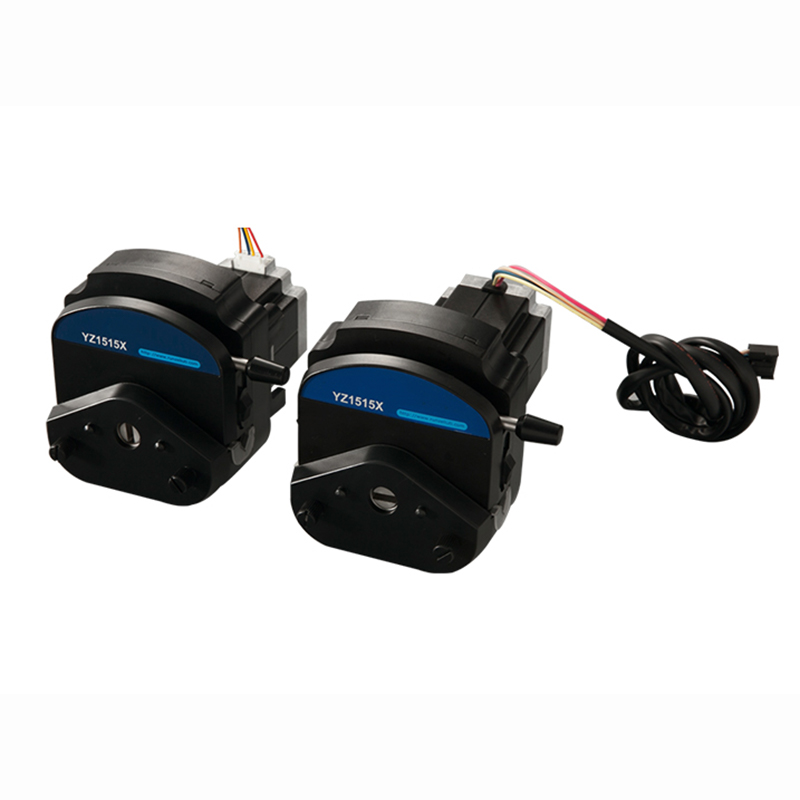

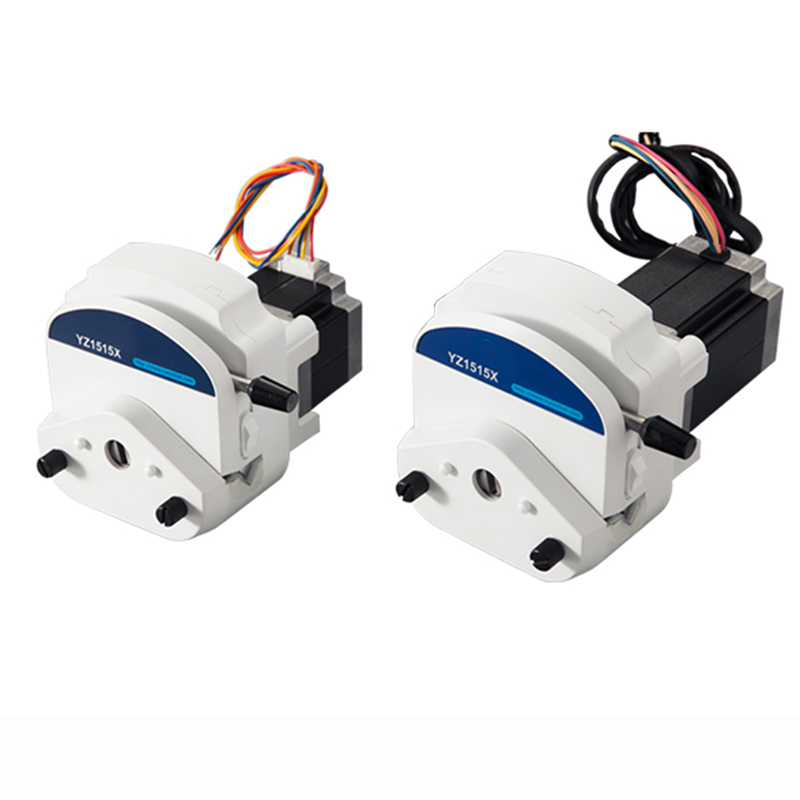

Product name: BJ30 Series STEP peristaltic pump
Application :
BJ30 Series STEP peristaltic pump is widely used in experiments, biochemical analysis, pharmacy, fine chemicals, bioengineering, pharmaceutical filling, food, paper industry, ceramics, water treatment, environmental protection, powder and other fields.
Product parameters:
|
Model No. |
BJ30-YZ1515X/YZ2515X/SN15/SN25 |
|
Pump Roller |
SST 3/6 rollers |
|
Pump Head |
ABS engineering plastic (YZ)
PC engineering plastic (SN) |
|
Fast Tubing |
YES |
|
Pump Color |
White/Black (YZ)
Transparent (SN) |
|
Motor Type |
57 Stepper motor (=NEMA 23 motor) |
|
Motor Speed |
0-400rpm |
|
Flow Range |
0-1700ml/min |
|
Tubing Size |
ID1.6-8.0mm WT1.6-2.5mm OD≤11.4mm |
| Tubing Life |
Silicone≥200H BPT Rubber≥1000H |
|
Pressure Rating |
Up to 3 bar (0.3Mpa) |
|
Working Environment |
0-40℃,＜80％ non-condensing |
|
Max Noise |
65db |
| Suction Head |
5 meters |
|
Pressure Head |
8 meters |
|
Dimension (L*W*H) |
175.2*122.1*106mm |
|
Net Weight |
1525g(3 roller) / 1585g(6 roller) |
Flow rate for Reference (YZ1515X)
Tubing
Speed (rpm)
Tube size
(ID*WT: mm)
3 Roller Flow rate (ml/min)
6 Roller Flow rate (ml/min)
Rubber tube
0-400rpm
1.6*1.6
0-113
0-88
3.2*1.6
0-462
0-347
4.8*1.6
0-966
0-612
6.4*1.6
0-1447
0-804
8.0*1.6
0-1887
0-1332
Silicon tube
1.6*1.6
0-117
0-92
3.2*1.6
0-491
0-375
4.8*1.6
0-1020
0-652
6.4*1.6
0-1494
0-848
8.0*1.6
0-1700
0-1400
* Flow rate measured by pumping pure water under room temperature and pressure, actual working flow rate maybe vary from different medium and working environment

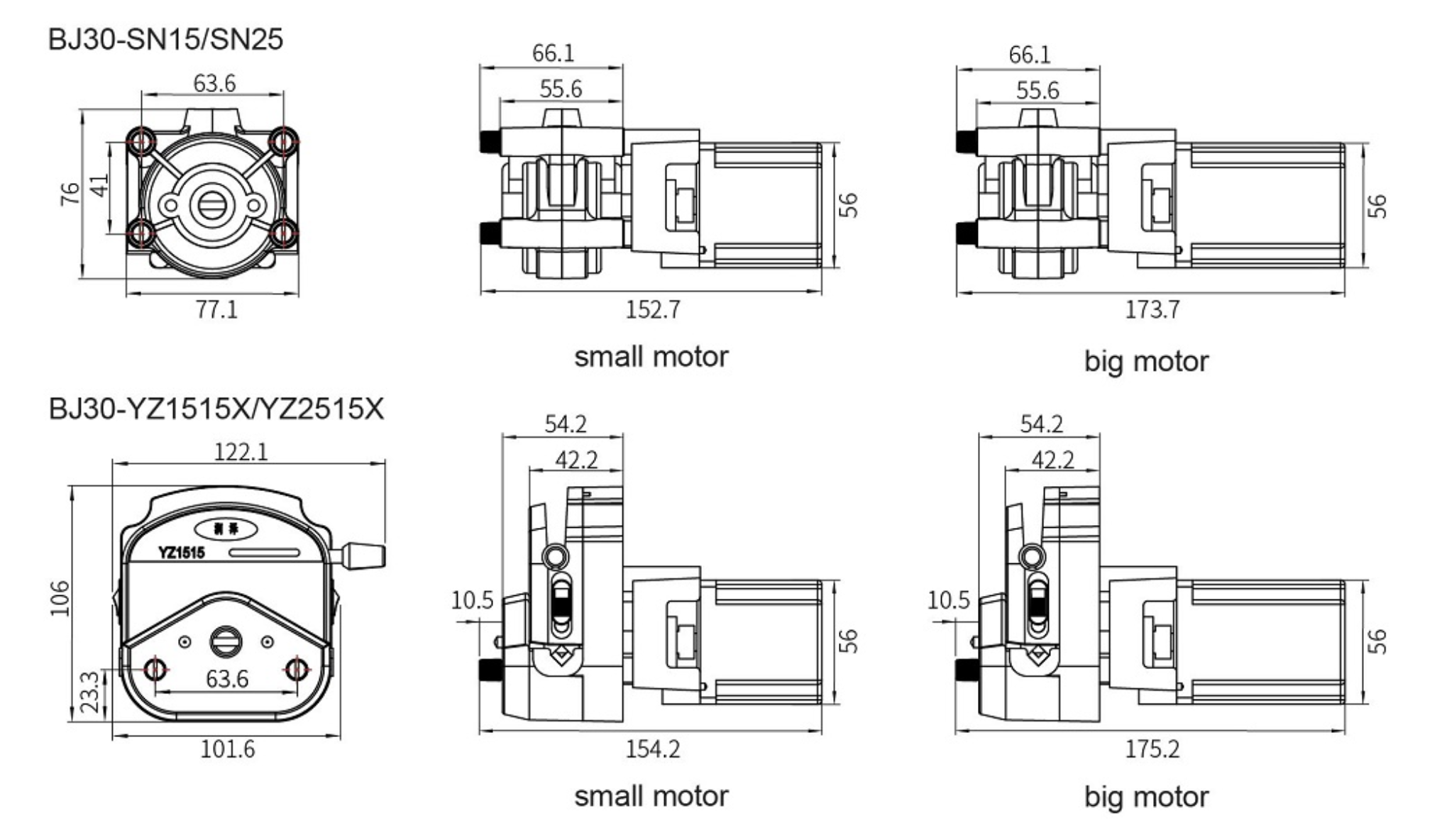

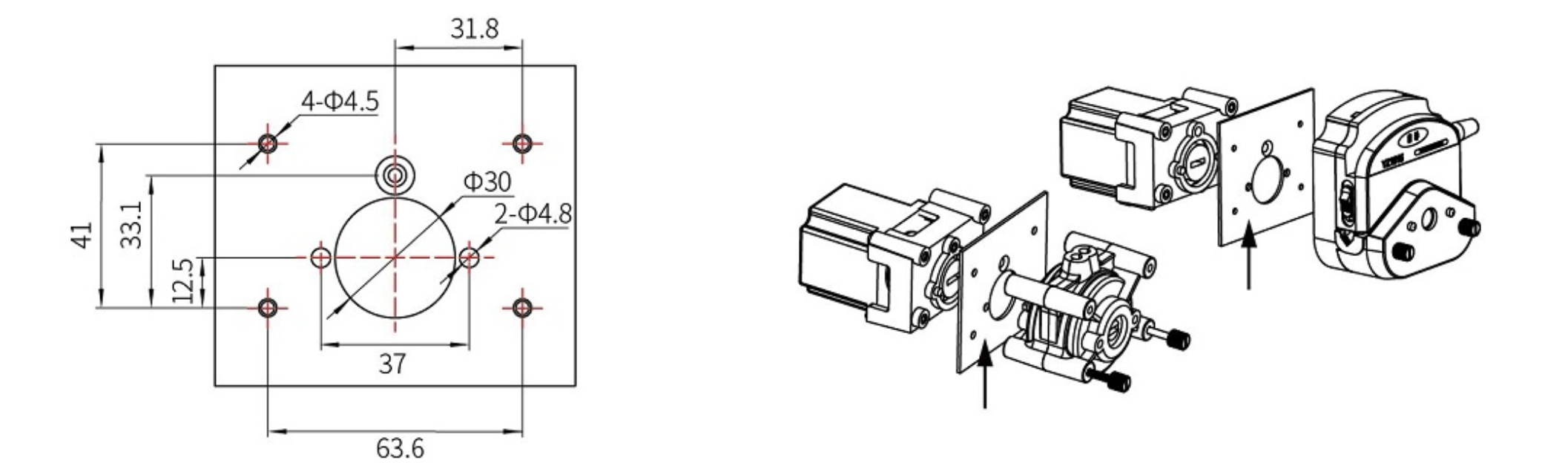

Dimensions(mm):
