JWP600

  • High pressure adjustable water flow control valve flow regulator valve air flow control valve
  • High pressure adjustable water flow control valve flow regulator valve air flow control valve
High pressure adjustable water flow control valve flow regulator valve air flow control valveHigh pressure adjustable water flow control valve flow regulator valve air flow control valve

High pressure adjustable water flow control valve flow regulator valve air flow control valve

  • Model:JWP600
  • Working pressure:<0.4MPa
  • Working medium:Gas or liquid
  • Valve main material:Stainless steel
  • Product description: "Precision adjustment valve" is mainly used with micro pumps, with delicate adjustment, wide range of adjustment, easy to install, simple to use and so on. Made of stainless steel, strong corrosion re
  • INQUIRY   EMAIL

Product details

Product Name : Precision regulating Valve

Product Model: JWP600

Features:

"Precision adjustment valve" is mainly used with micro pumps, with delicate adjustment, wide range of adjustment, easy to install, simple to use and so on. Made of stainless steel, strong corrosion resistance. Connected to different lines, the flow, vacuum and output pressure can be adjusted.

Technical parameters:

Model

Precision control valve

Maximum drift diameter

3mm

working pressure

0.4MPa

Radius of mounting hole

14.5mm

Working medium

Gas or liquid

Medium gas temperature

-5C to 60C (unfrozen)

Valve main material

Stainless steel

Note:

1. Maintenance: valves should be used in a clean environment to keep the thread adjustment part clean.

2. When the valve is adjusted to the limit position of full open and fullclosure, do not use too much force to avoid damaging the valve core.

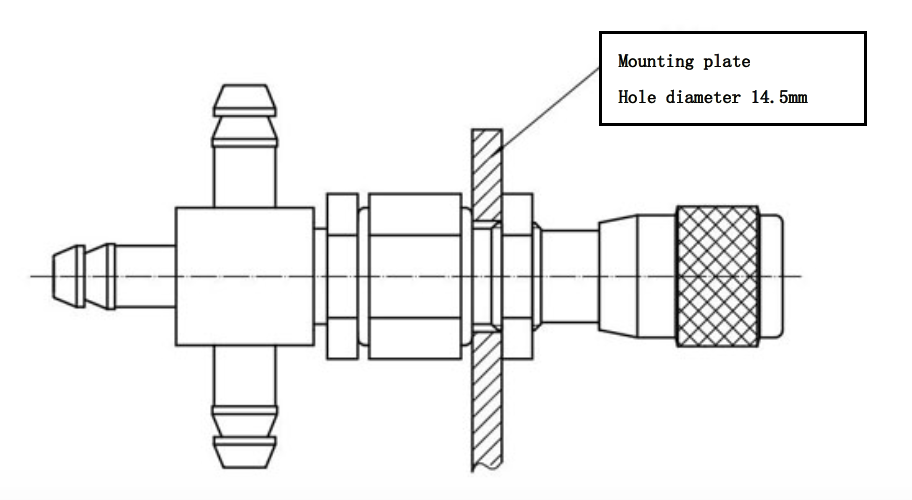

Installation drawings :
