Product Details

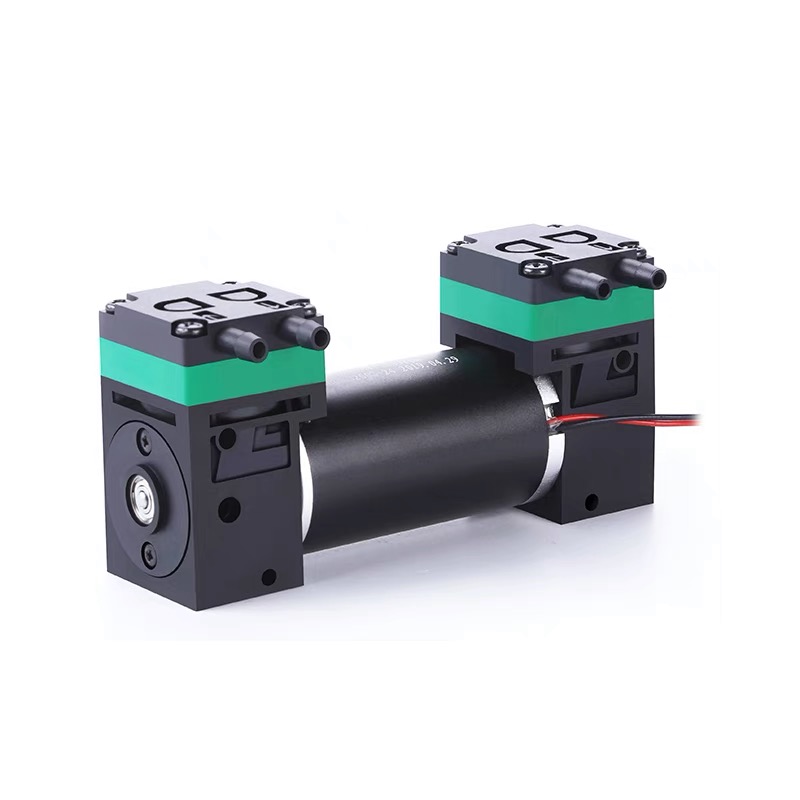

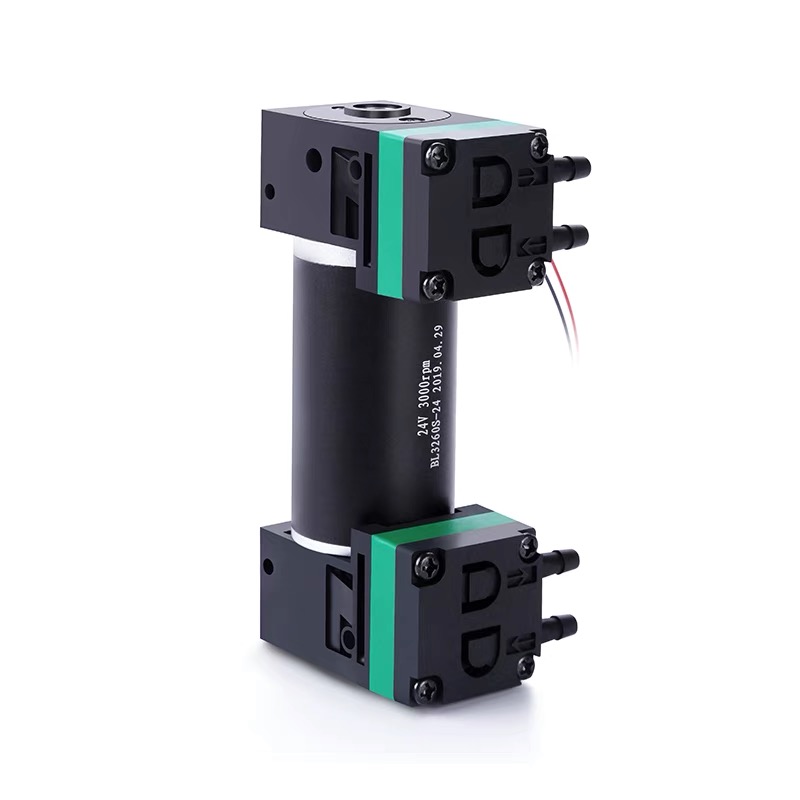

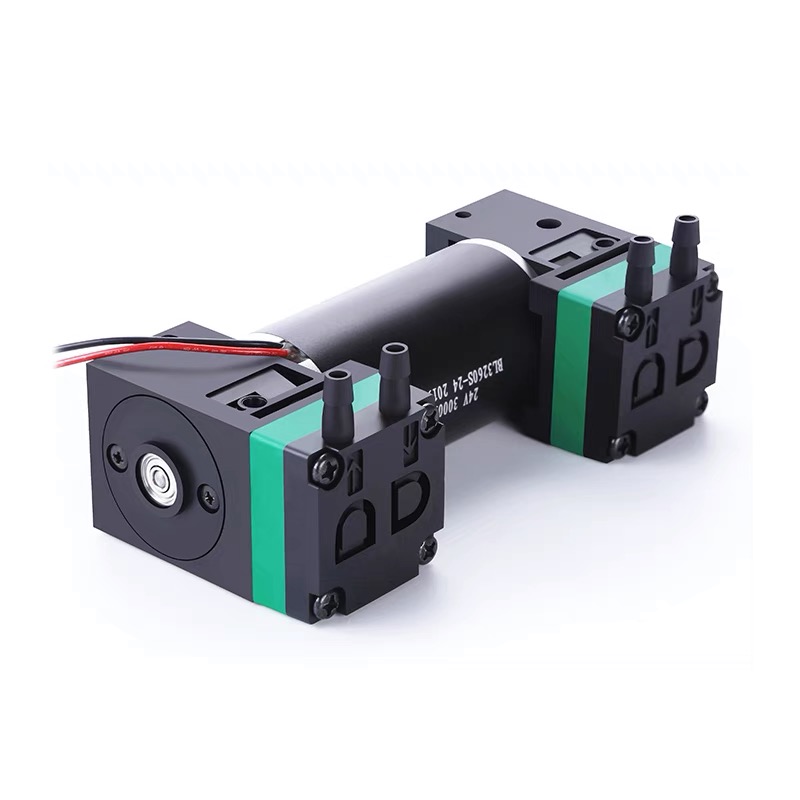

Product Name：micro diaphragm pump
Product Model：L03BL-2
Applications：
Medical usage：For liquid transfer,sampling,dispensing
Factory usage：For liquid dispensing
Environmental usage：For transferring and sampling sewage
Chemical engineering usage:Sample analysis,dispensing liquid
Ink Printer:For transferring ink,cleaning pipe line
Laboratory usage：For liquid transfer，sampling
Product features：
1.Maintenance-free ,Stable and adjustable speed 2.Accurate repeatability
3.Dry-running,self-priming 4.Long lifetime , well sealed
Datasheet：
Air parameter
|
Model |
Air flow |
Negative pressure |
Positive pressure |
Motor |
Voltage |
|
L03BL1255-2 L03BL2455-2 |
1L/min*2 |
-0.055MPa |
0.09MPa |
BLDC |
12V, 24V |
Liquid parameter
|
Model |
Liquid flow |
Suction head |
Pressure head |
Motor |
Voltage |
|
L03BL1255-2 L03BL2455-2 |
0.35±0.5L/min * 2 |
5m |
10m |
BLDC |
12V, 24V |
|
Motor |
Brushless DC (BLDC) |
|
Temp |
50℃ |
|
Noise level |
<50dB |
|
Motor life |
8000hrs |
|
Power |
5W |
|
Relative humidity |
<95% |
