Product Details

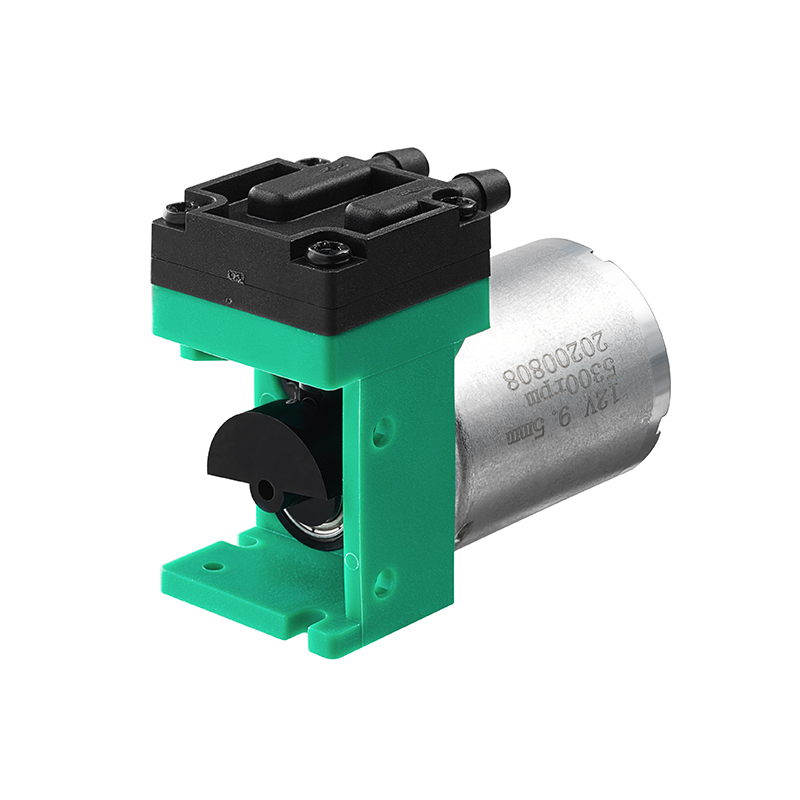

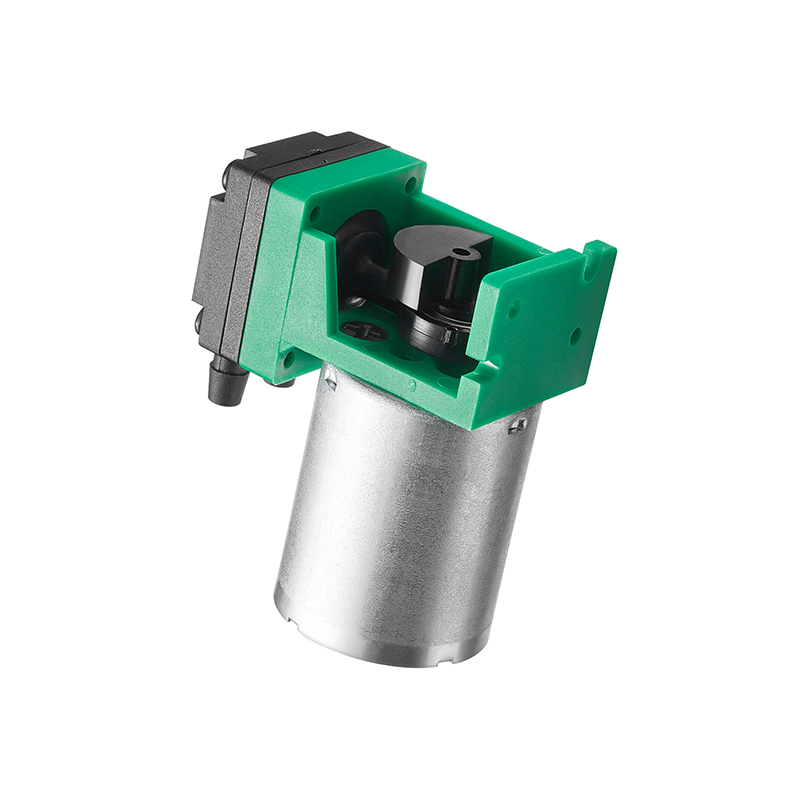

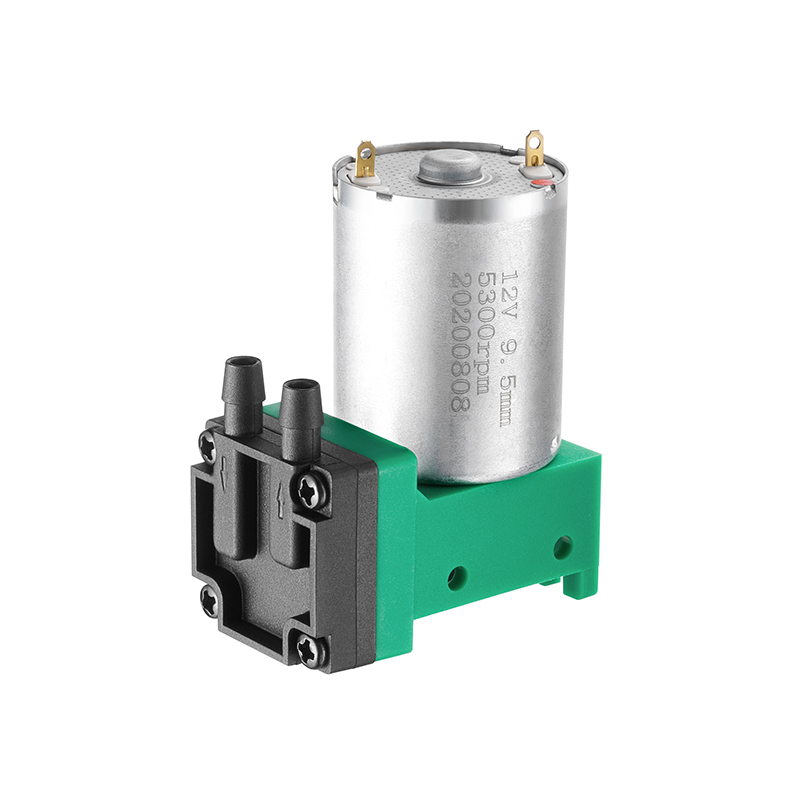

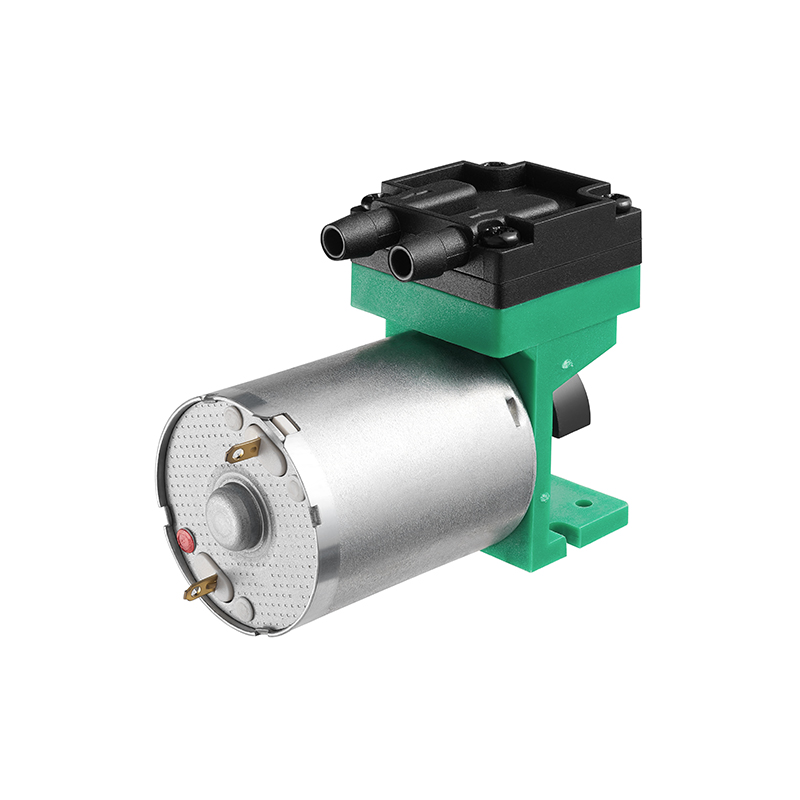

Product Name：micro diaphragm pump
Product Model：G2DC
Applications：
Medical usage：Gas transmission, applied to medical equipment
Factory usage：Vacuum adsorption, used in industrial equipment
Environmental usage：Gas sampling, used in environmental protection equipment
Beauty usage: Applied to beauty/physiotherapy equipment
Product features：
1.Maintenance-free ,Stable and adjustable speed 2.Accurate repeatability
3.Dry-running,self-priming 4.Long lifetime , well sealed
Datasheet：
Air parameter
|
Model |
Air flow |
Negative pressure |
Positive pressure |
Motor |
Voltage |
|
G2DC |
1.5L/min |
-0.068MPa |
0.08MPa |
DC |
6V/12V/24V |
Motor
DC
Lifetime
1000 hrs
Voltage
6V/12V/24V
Power
260/150/90mA
Noise level
<55dB
Usage
Air
Net Weight
64g
Dimensions
51x22x37.8mm

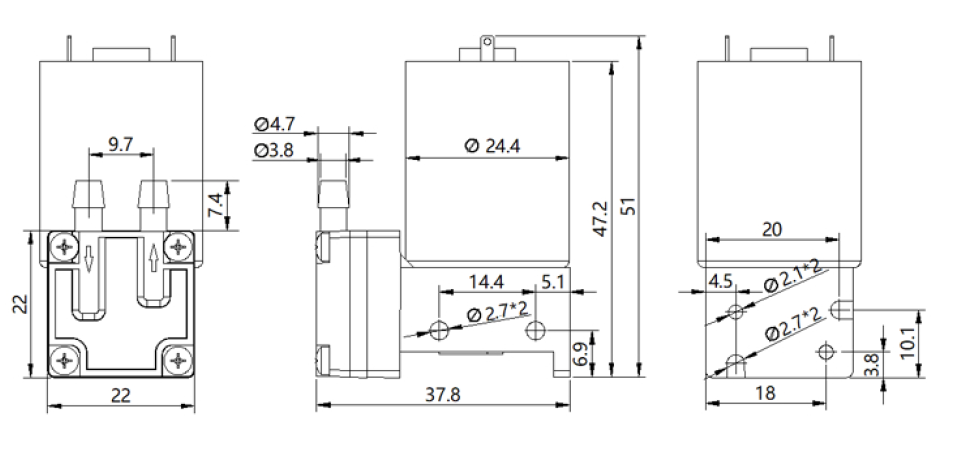

Installing drawing：Unit（mm）
